Cast iron pump casing, motor bracket and impeller. Stainless steel shaft. Mechanical seal with ceramic/graphite counterfaces. Flanged connection points DN32-DN80 2236 PN10 standards. Thread type counter flanges UN12254.
- CM40-160A - 5.5HP
- CM50-160B - 7.5HP
- CM65-125A - 10HP
- CM65-160B - 15HP
- CM65-160A - 20HP
- CM80-160B - 25HP
- CM80-160A - 30HP
| TYPE | HP | kW | Q (m3 /h - l/min) |
| CM40-160A | 5.5HP | 4 | 32,7 33,8 33,9 33,9 33,6 33,0 32,2 31,2 30,0 28,4 26,6 24,6 22,3 |
| CM50-160B | 7.5HP | 5,5 | 34,2 35,1 34,8 34,4 33,8 33,1 32,4 31,6 30,8 29,8 28,8 26,6 24,0 21,0 17,6 |
| CM65-125A | 10HP | 7,5 | 23,2 24,7 24,7 24,6 24,5 24,4 24,3 24,1 23,8 23,4 23,0 22,7 22,3 21,7 20,4 19,0 17,4 15,1 |
| CM65-160B | 15HP | 11,0 | 35,7 35,6 35,4 35,0 34,5 34,0 33,4 32,7 32,0 30,3 28,0 25,3 22,1 20,4 19,0 |
| CM65-160A | 20HP | 15,0 | 44,1 44,0 43,9 43,7 43,3 42,8 42,3 41,7 41,1 39,8 37,8 35,3 32,3 30,7 28,9 |
| CM80-160B | 25HP | 18,5 | 34,9 37,9 37,6 37,3 36,9 36,0 35,0 33,9 32,7 32,1 31,5 30,9 30,4 29,2 27,5 24,9 22,3 |
| CM80-160A | 30HP | 22,5 | 38,8 42,4 42,1 41,8 41,4 40,6 39,7 38,7 37,5 36,8 36,1 35,5 34,9 33,6 32,1 29,8 27,4 24,5 |

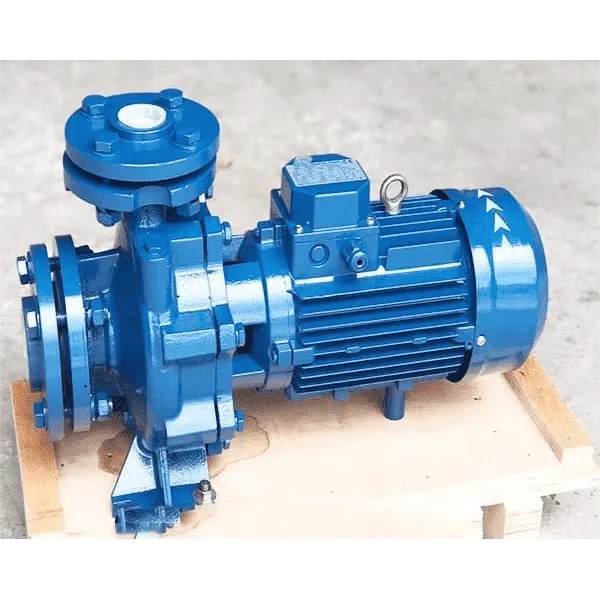

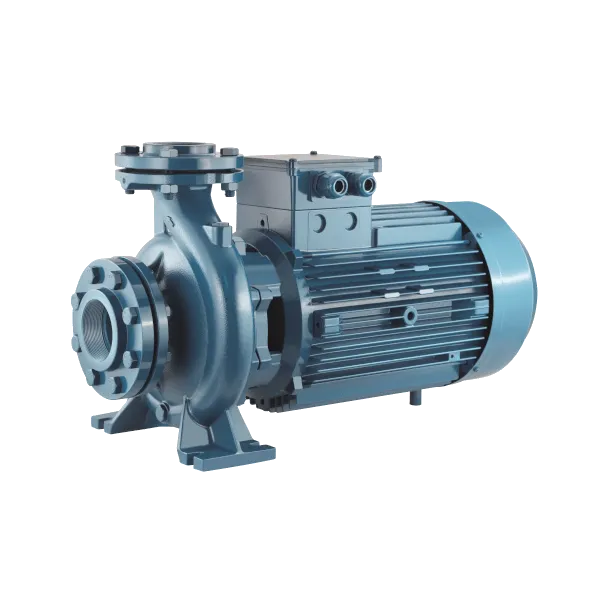

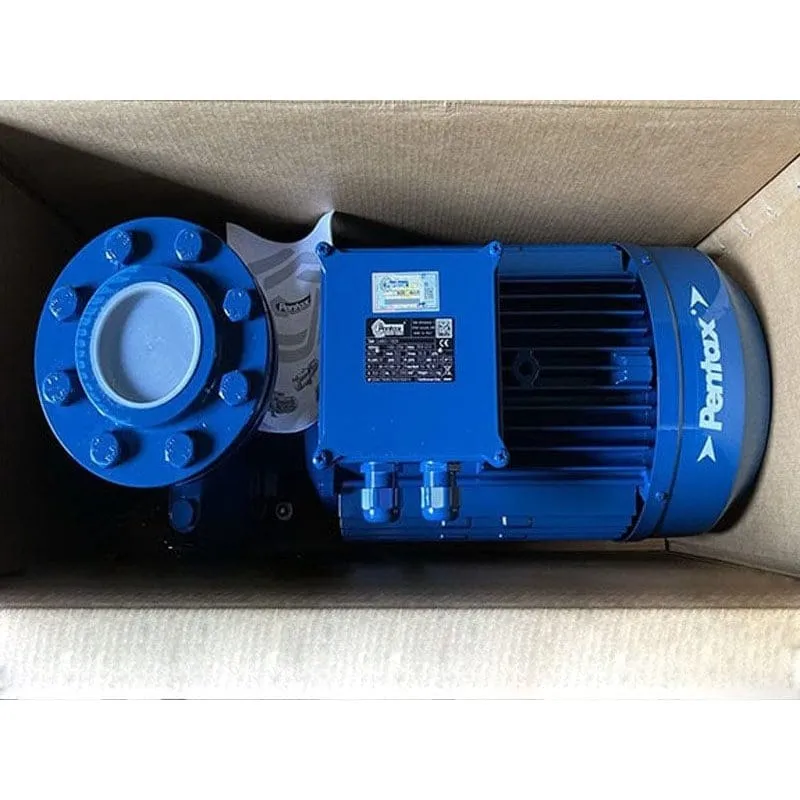

Upgrade your water pumping solutions with the Pentax Monoblock Centrifugal Water Pump. This reliable pump is designed to provide efficient water transfer and supply. With a compact Monoblock design, it's ideal for various applications, from residential to commercial. Experience consistent water flow and dependable performance with this Pentax water pump.
