4MPE10 1.0HP 0.75Kw 1500N for 4S100-09A

4MPE15 1.5HP 1.1Kw 1500N for 4S100-14A

4MPE20 2.0HP 1.5Kw 1500N for 4S100-18A

• Pump shaft extension: NEMA standard
• Liquid temperature: max 35° C
• Cable: 1,75 to 4 m according to motor size (3 wires ground)
• Upper support: nickel plated cast iron
• External Jacket, shaft and cup stainless steel
• Mechanical seal ceramic-graphite
• Ball bearings: axial and radial oil lubricated
• Number of startups/hr: max 30
• Max Depth of immersion: 150 m
• Asynchronous 2 poles rewindable in oil bath: 1~ 220/230V-50Hz, 3~ 380/415V-50Hz
• Insulation class: F
• Protection degree: IP68

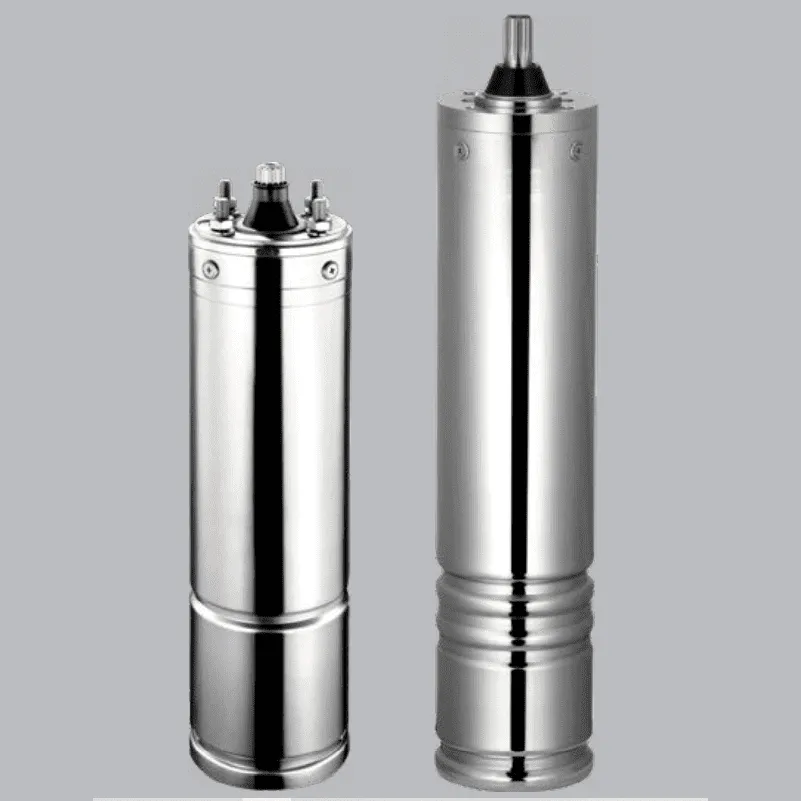

Elevate your deep well pumping system with the Pentax Submersible Motor designed exclusively for Deep Well Pumps. Available in 1.0HP, 1.5HP, and 2.0HP options, each motor is crafted for efficient and reliable performance in extracting water from deep wells. The robust design ensures durability and longevity, making it ideal for various water supply applications. Pentax's commitment to quality shines through, providing motors that deliver consistent power to meet the demands of deep well pumping. Upgrade your water supply solution with these versatile and powerful submersible motors.
