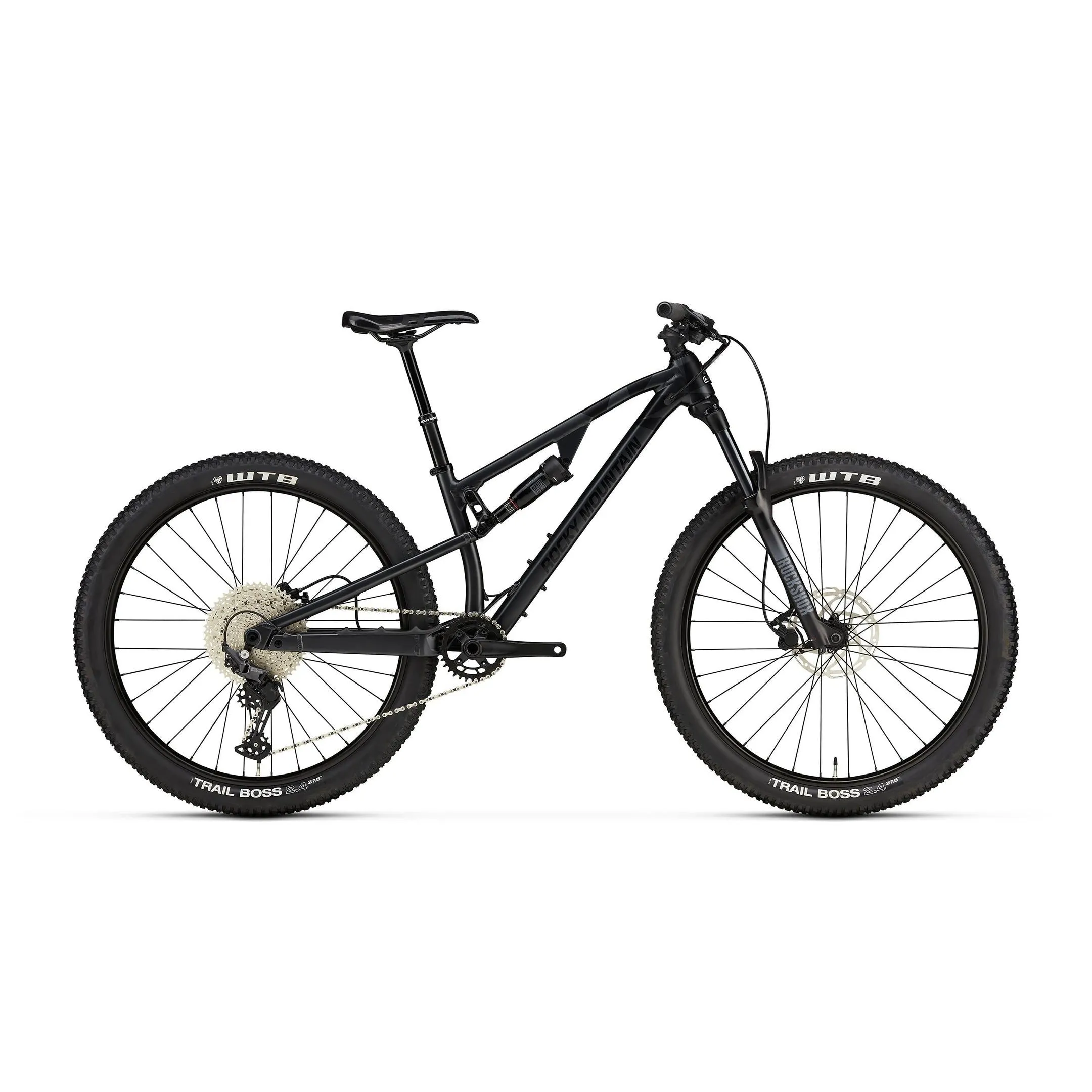

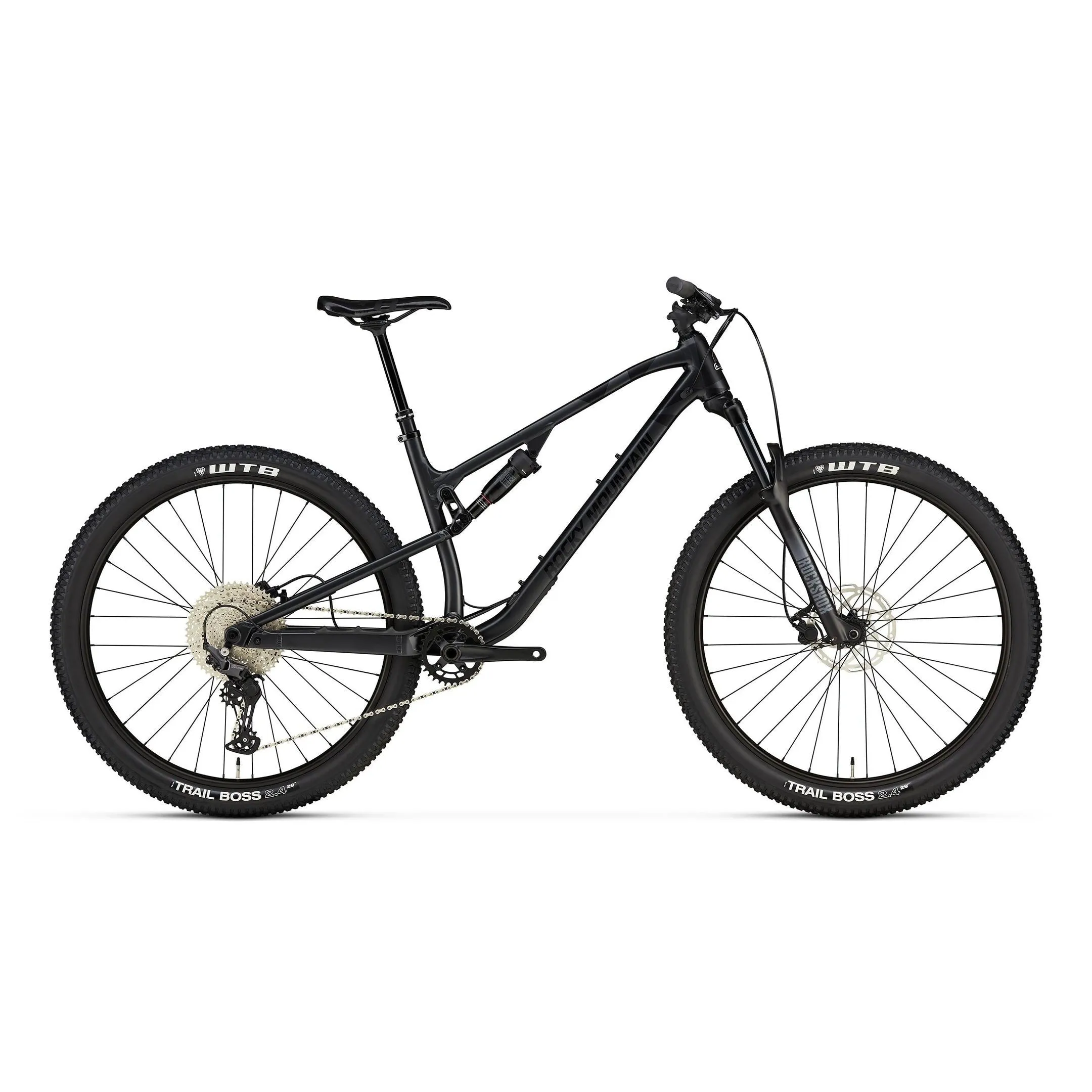

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.
Frame: FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel. FORM™ Alloy Rear Triangle
Fork: RockShox Judy Silver 130mm | 27.5 = 42mm Offset | 29 = 51mm Offset
Front Travel: 130
Shock: RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm |Size-Specific tune in FAQ
Rear Travel: 120
Headset: FSA Orbit NO.57B | Retainer Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem: Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50m
Handlebar: Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips: Rocky Mountain Lock On Light
Brakes: Tektro HD-M275 | Shimano Pad Compatible | F:Tektro 180mm | R:Tektro 180mm
Shifters: Shimano Deore 11spd
Rear Derailleur: Shimano Deore 11spd
Cranks & Chainring: Rocky Mountain Microdrive | 32T |Sram 76mm BCD | 24mm Spindle | Crank Length: XS = 165mm | SM - XL = 170mm
Bottom Bracket: Rocky Mountain Sealed BB92 - Shimano Compatible
Cassette: SunRace CSMS8 EA1 11-51T
Chain: KMC X11-1
Front Hub: Rocky Mountain Sealed Boost 15mm
Rear Hub: Novatec D462 Sealed Boost 148mm
Spokes: 2.0 Stainless
Rims: Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Tires: F: WTB Trail Boss Comp 29 x 2.4 // R: WTB Trail Boss Comp 29 x 2.4
Seatpost: Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle: WTB Volt 142
Weight: 34.32|15.6 KGS
Notes: We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
